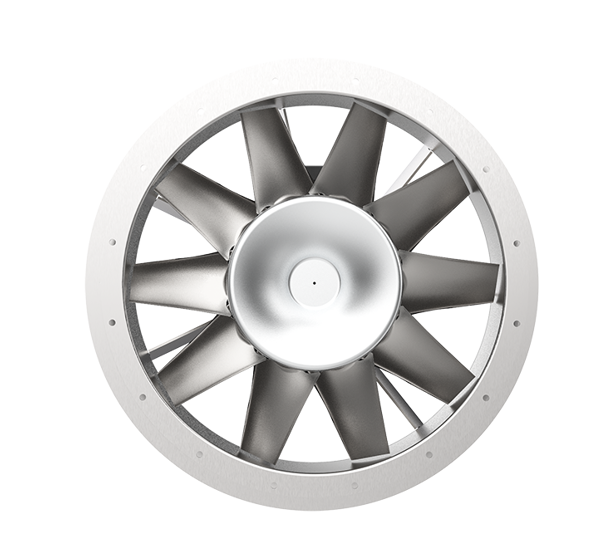

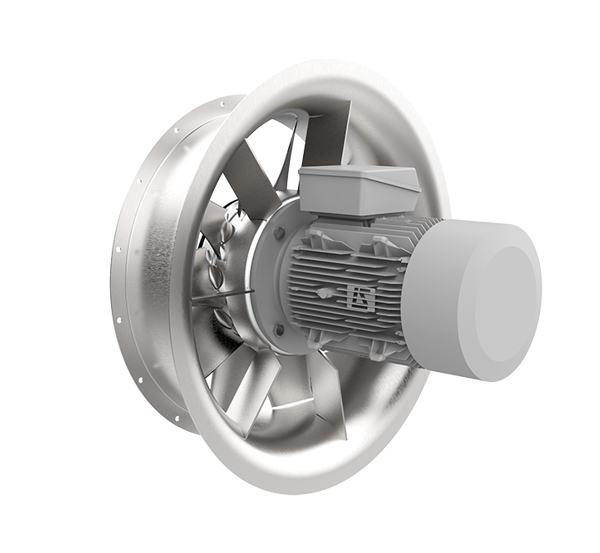

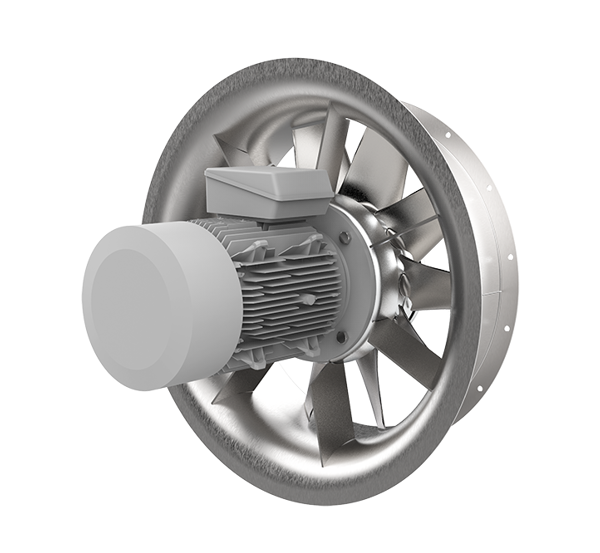

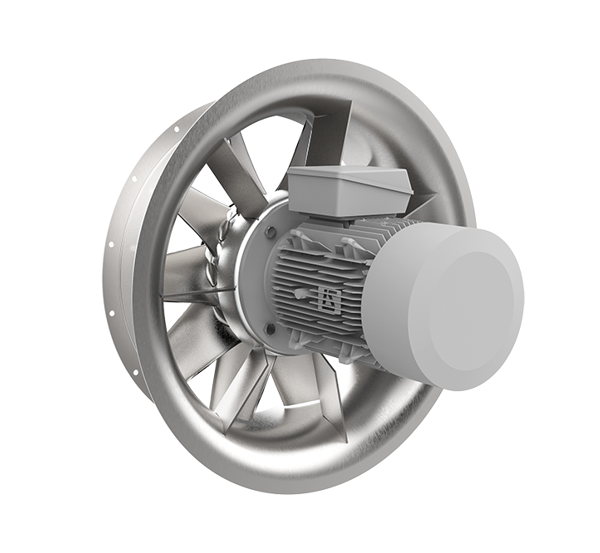

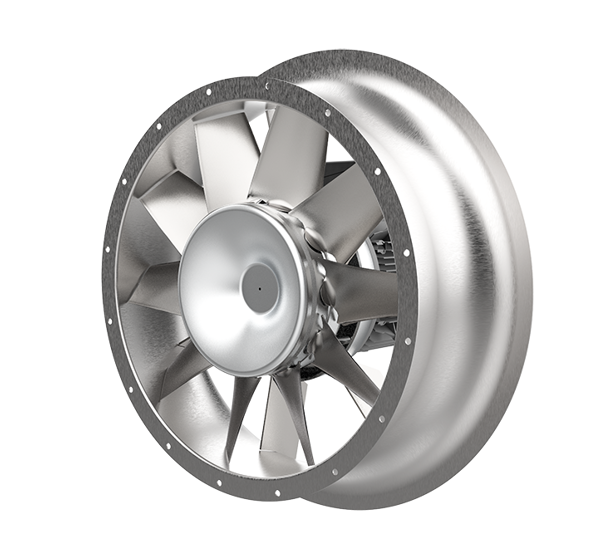

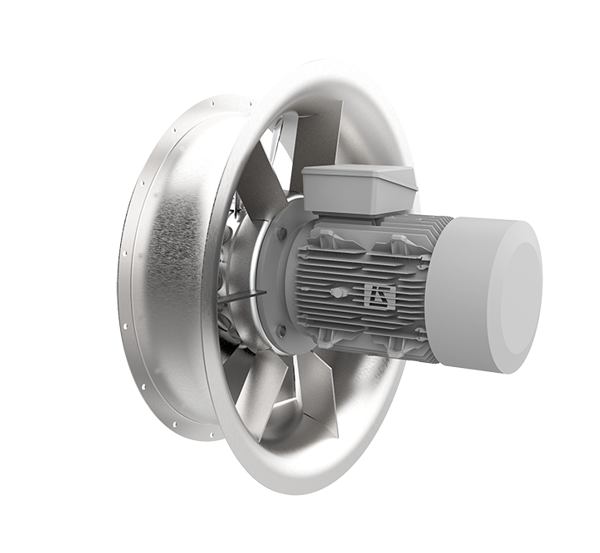

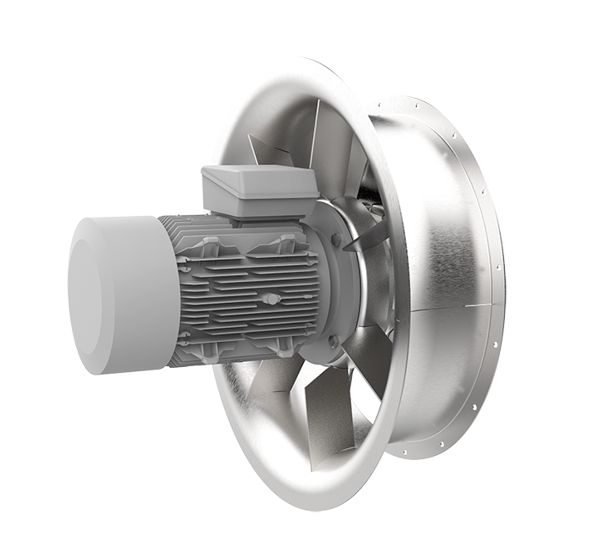

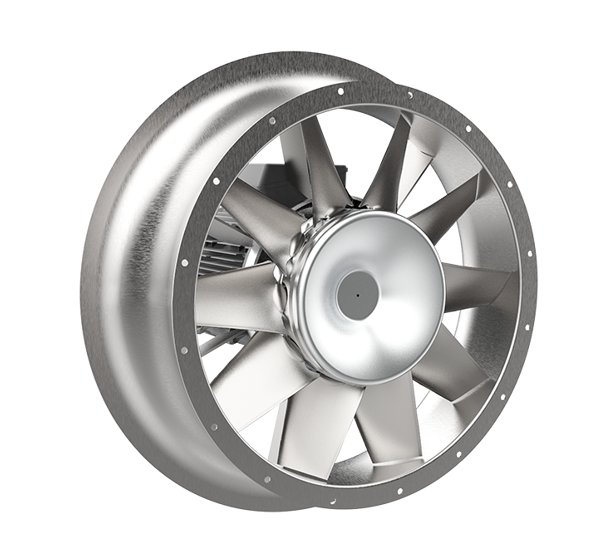

NovAx ACP-ACG
The NOVENCO NovAx ACP and ACG are unidirectional axial flow fans designed for conventional, industrial and marine use.
Both models are also available as smoke fans for operation during fires in car parks, commercial and industrial buildings, tunnels and similar environments.
The smoke fan versions are tested and approved for smoke exhaust requirements.
The ACG smoke fans include an additional guide vane arrangement for improved efficiency.
Optionally the NovAx ACP and ACG fans are available as smoke fans. The NovAx ACP and ACG smoke exhaust fans are for conventional, industrial and marine environments and suitable for operation during fires in carparks, commercial and industrial buildings, tunnels and more.
The design is tested and approved to meet requirements for smoke exhaust. The ACG smoke fans are fitted with an additional guide vane arrangement to increase fan efficiency.
- Corrosion categories according to EN-ISO 12944-2:2017
- Standard: C3
- Optional: C4 or C5
- Airflow: 0.1 to 65 m³/s (350 to 235,000 m³/h)
- Pressures up to 2000 Pa
- Efficiencies up to 83%
- Adjustable blade angles
- Integrated inlet cone
- ACG: Additional guide vane arrangement
- 14 fan sizes from Ø250 to Ø1600 mm
- Seven hub sizes from Ø160 to Ø578 mm
- Casing thicknesses: 2.5, 3 or 4 mm depending on size
- Corrosion classes: C3 standard, C4 or C5 optional
- Accessories for mounting, connection, sound attenuation, safety and regulation
- Also available as type NovAx ACN for duct installation or the 100% reversible NovAx ARN
- Product configuration with AirBox™
- ACP and ACG fans: 14 sizes from Ø250 to Ø1600 mm
- Seven hub sizes from Ø160 to Ø578 mm
- Fan casing thicknesses of 2.5, 3 or 4 mm depending on size
