ARC-AUC

The ARC-AUC series provides height-saving reversible (ARC) and unidirectional (AUC) tunnel fans with long silencers, designed for aggressive road and rail environments. They serve a dual function, ensuring both normal ventilation and certified smoke extraction as part of the fire safety system.

Utilizing a space-saving rectangular design based on the NovAx™ platform of axial flow fans, these models achieve an installation height reduced by approximately 20% compared to standard round fans, which is a significant advantage where technical space is limited.

Product highlights
@contentitem.EvtBillede.Name
Above ErP compliance
NOVENCO fans surpass the EU Ecodesign (ErP) requirements and deliver higher efficiency with consistent performance. This results in lower power use, reduced operating costs, and a more sustainable choice for modern ventilation systems.
@contentitem.EvtBillede.Name
EN 12101-3:2015 certified
NOVENCO smoke fans are tested and certified for operation with variable speed drives for temperatures at up to 400°C during 2 hours according to EN 12101-3 for powered smoke and heat control fans.
Space-saving rectangular design
Reduces installation height by approximately 20% compared to round tunnel fans, ideal for tunnels with restricted space.
Dual-purpose ventilation and smoke extraction
Handles daily ventilation and functions as part of the smoke control system, approved for F200, F300, and F400 smoke exhaust classes, providing safe and reliable emergency smoke extraction.
Robust construction for aggressive atmospheres
Built with hot-dip galvanised or stainless steel components and aluminium impeller blades for durability in demanding tunnel environments.

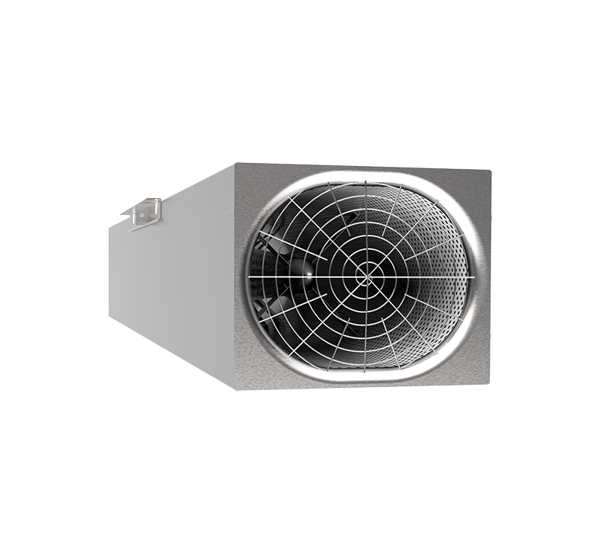

AUC magnelis_1.png

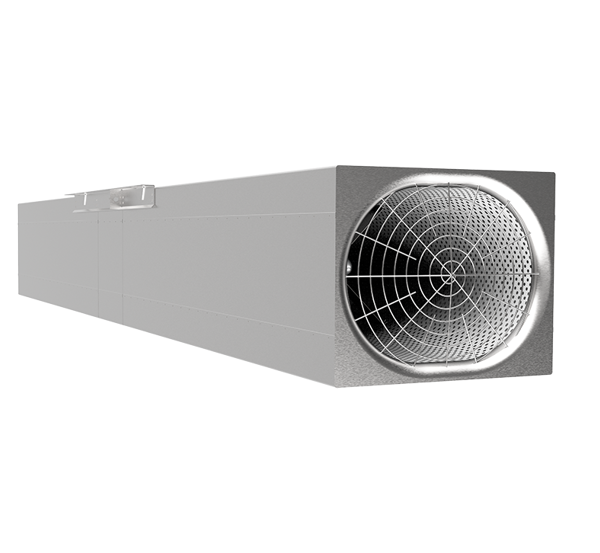

AUC magnelis_2.png

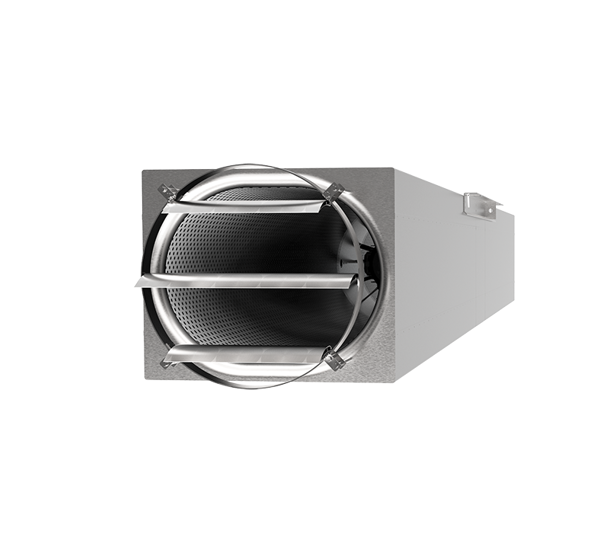

AUC magnelis_3.png

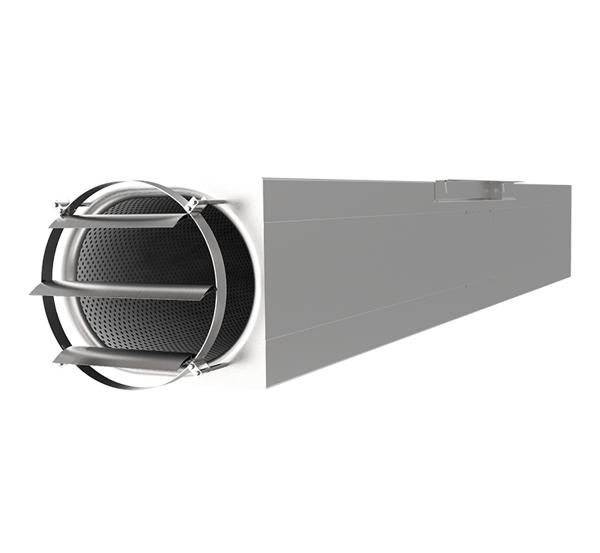

AUC magnelis_4.png

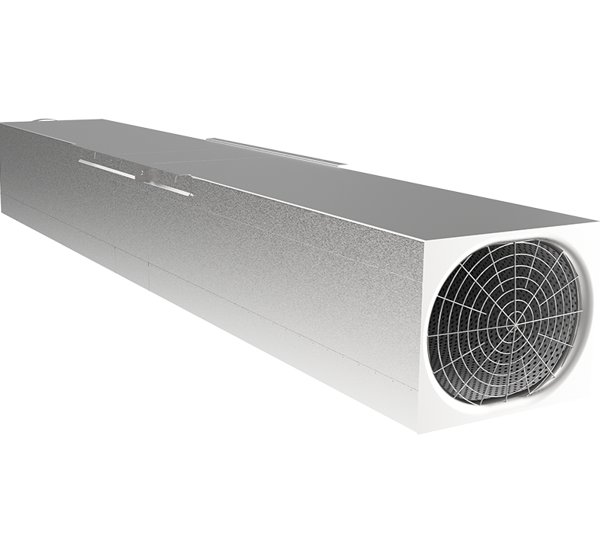

AUC magnelis_5.png

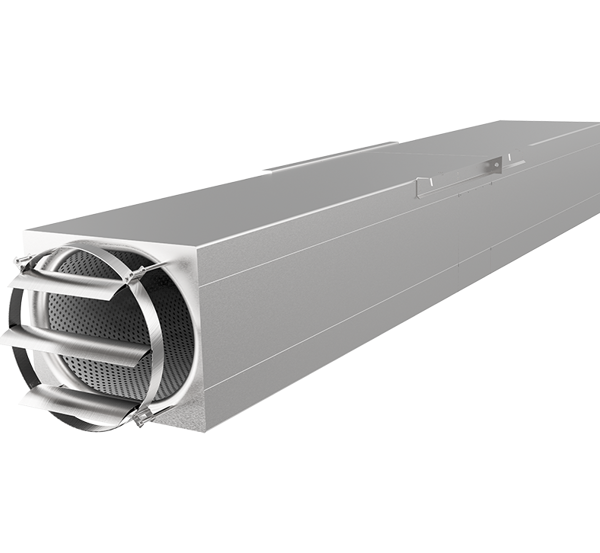

AUC magnelis_6.png
Next image
Previous image
AUC magnelis_1.png
AUC magnelis_2.png
AUC magnelis_3.png
AUC magnelis_4.png
AUC magnelis_5.png
AUC magnelis_6.png
Product highlights
@contentitem.EvtBillede.Name
Above ErP compliance
NOVENCO fans surpass the EU Ecodesign (ErP) requirements and deliver higher efficiency with consistent performance. This results in lower power use, reduced operating costs, and a more sustainable choice for modern ventilation systems.
@contentitem.EvtBillede.Name
EN 12101-3:2015 certified
NOVENCO smoke fans are tested and certified for operation with variable speed drives for temperatures at up to 400°C during 2 hours according to EN 12101-3 for powered smoke and heat control fans.
Space-saving rectangular design
Reduces installation height by approximately 20% compared to round tunnel fans, ideal for tunnels with restricted space.
Dual-purpose ventilation and smoke extraction
Handles daily ventilation and functions as part of the smoke control system, approved for F200, F300, and F400 smoke exhaust classes, providing safe and reliable emergency smoke extraction.
Robust construction for aggressive atmospheres
Built with hot-dip galvanised or stainless steel components and aluminium impeller blades for durability in demanding tunnel environments.
Related products
AUZ
AUR ARR magnelis_1.png
ARR-AUR
Navigate to
Product information
Product data
Downloads
Fan sizes
Contact form
Related cases
Related industries
Navigate to
Product information
Product data
Downloads
Fan sizes
Contact form
Related cases
Related industries

ARC-AUC height-saving tunnel jet fans are dual-function tunnel fans built on the reliable NovAx™ axial flow platform, suitable for both normal ventilation and certified smoke extraction in classes F200, F300, and F400. Available in reversible (ARC) and unidirectional (AUC) versions, their rectangular, height-saving design reduces overall installation height and increases flexibility in confined tunnel spaces.

The series includes three impeller diameters Ø 630, Ø 710, and Ø 800 mm, featuring long silencers of 1350 mm. The installation height is only 40 mm more than the fan impeller diameter. Wire guards and deflectors are available as fan accessories. Also available in the standard round NovAx versions (AUR/ARR) up to Ø 1600 mm.

Certifications
  • F200, F300 and F400 smoke extract approvals in accordance with the EN 12101-3:2015.
  • Ff300 fans have been tested at 300°C during 2h.
Performance
  • Standard operating temperature range from –20 to +40 °C.
  • Measured thrust ranging from 350 to 960 Newtons (N) with motor powers from 11kW up to 40 kW.
Sizes
  • Ø630 mm (installation height 670 mm)
  • Ø710 mm (installation height 750 mm)
  • Ø800 mm (installation height 840 mm)
Fan casing materials & corrosion categories
  • Hot-dip galvanised sheet steel or stainless steel.
  • Corrosion categories C3, optional C4 or C5 in accordance with EN/ISO 12944-2.
Accessories & variations
  • Wire guards.
  • Deflectors.
  • Safety chains.
  • Optional round NovAx AUR and ARR versions.

Three impeller diameters: Ø630, Ø710 and Ø800 mm, with measured thrust up to 960 Newtons (N).

Need help with your next project?
We are here.

Contact us for inquiries and technical support
Our engineering team provides expert guidance and delivers custom technical solutions for clients worldwide.

Name*
Company*
Email address*
Phone*
Please describe your inquiry

Related cases

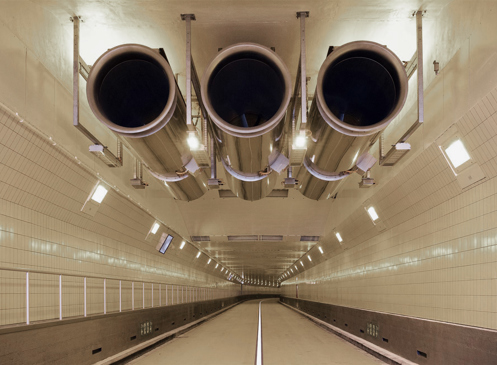

Maastunnel_website 1.jpg
Maastunnel
Space-saving rectangular tunnel fans reduce installation height by 20%, proven across five major Dutch tunnel installations.
Discover the case
85,5 % energy savings carpark_website.jpg
Control System Upgrade
In 2001, NOVENCO® Building & Industry installed one of the first jet fan systems in the United Kingdom for an enclosed underground car park at a shopping mall on the scenic waterfront of a coastal city in South East England. The system was built without CO detection, which at the time was common practice.
Discover the case

Related cases

Maastunnel_website 1.jpg
Maastunnel
Space-saving rectangular tunnel fans reduce installation height by 20%, proven across five major Dutch tunnel installations.
Discover the case
85,5 % energy savings carpark_website.jpg
Control System Upgrade
In 2001, NOVENCO® Building & Industry installed one of the first jet fan systems in the United Kingdom for an enclosed underground car park at a shopping mall on the scenic waterfront of a coastal city in South East England. The system was built without CO detection, which at the time was common practice.
Discover the case

Related industries

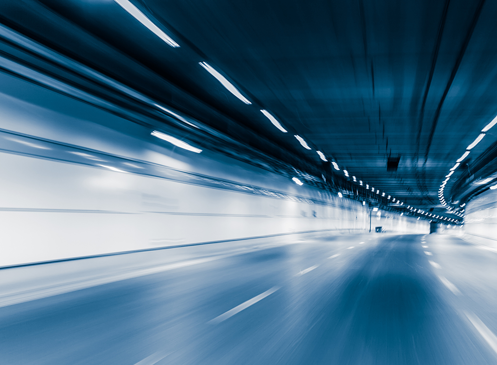

Hero tunnel_website.png
