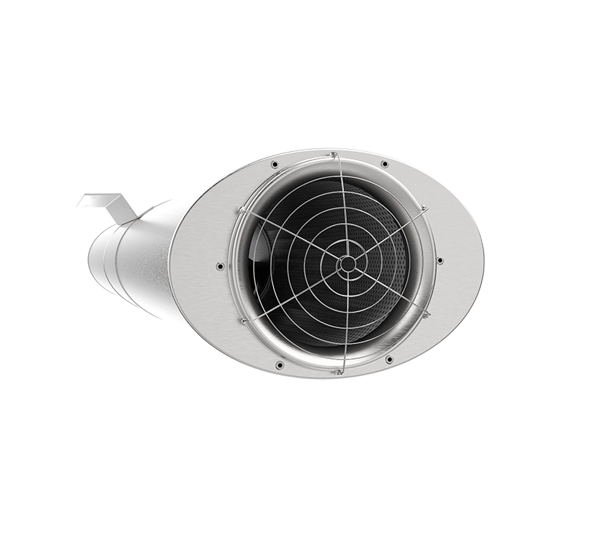

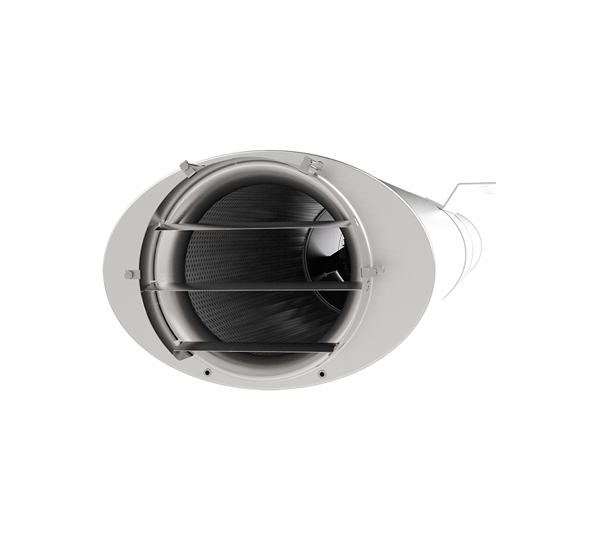

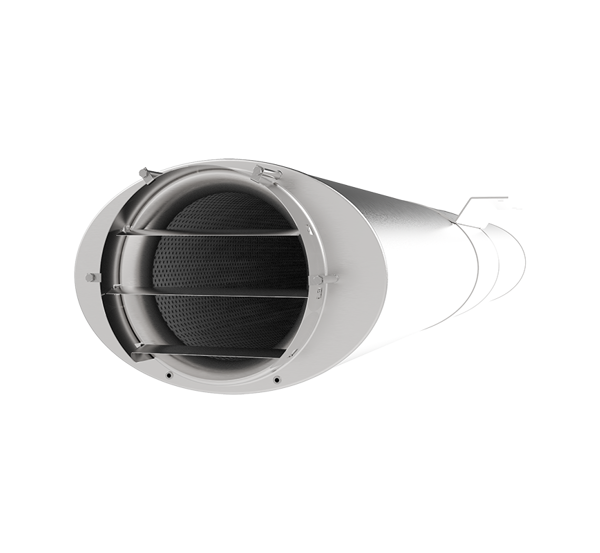

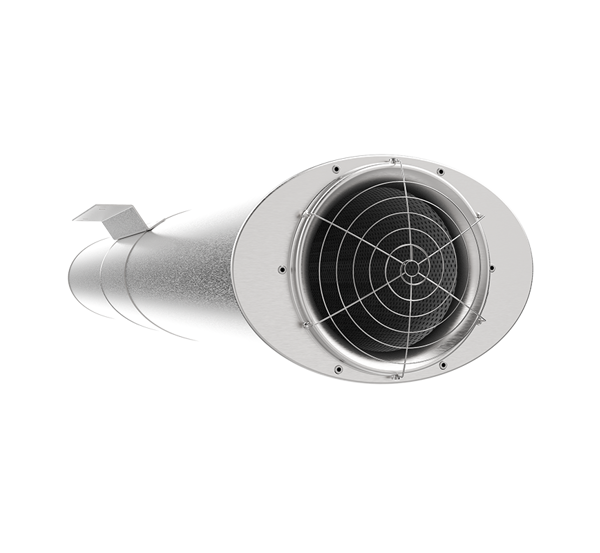

ARO-AUO
The ARO-AUO jet fans provide efficient day-to-day ventilation and dependable smoke control performance in enclosed car parks.
Their aesthetic oval design with long silencers and fan based on the robust NovAx platform ensure exceptionally low sound levels and high thrust, while meeting the strict requirements for certified smoke exhaust operation, offering both performance and safety.
The ARO-AUO jet fans are designed for car park installation. They feature three impeller diameters of Ø290, Ø380 or Ø500 mm and operate within a standard temperature range of –20 to +40°C. Two-speed motors are standard.
Materials include a galvanised steel fan casing, galvanised steel hub, aluminium blades, and deflectors on the outlets. Reversible models have deflectors on each side of the jet fan.
- F200, F300 and F400 smoke extract approvals in accordance with EN 12101-3:2015.
- Ff300 fans have been tested at 300°C during 2h.
Thrust levels from 5 to 111 N and sound pressures from 35 to 64 dB(A) at 3m/45°.
Three jet fan sizes (290, 380 and 500) with two-speed motors as standard.
- Galvanised steel casings, silencers and hub with aluminium impeller blades.
- Corrosion category C3 in accordance with EN/ISO 12944-2.
- Reversible (ARO) and unidirectional (AUO) versions.
- Deflectors on the outlets (on both sides for reversible ARO).
- Inlet wire guard for the unidirectional AUO.
Impeller diameters: Ø290, Ø380 and Ø500 mm with measured thrust up to 111 Newtons (N).
