CGF

The NOVENCO CGF unidirectional centrifugal jet fan is a compact, robust, and reliable solution perfectly suited for car parks, featuring an ultra-low installation height for use in spaces with low ceilings.
Its super low-profile design and special outlet guarantee efficient airflow control and high thrust transfer.
Constructed from corrosion-protected galvanised steel, the CGF is certified for dual operation, providing highly efficient, low-noise daily ventilation and dependable smoke control, maintaining performance at 300°C for two hours during a fire.

Product highlights
@contentitem.EvtBillede.Name
Above ErP compliance
NOVENCO fans surpass the EU Ecodesign (ErP) requirements and deliver higher efficiency with consistent performance. This results in lower power use, reduced operating costs, and a more sustainable choice for modern ventilation systems.
@contentitem.EvtBillede.Name
EN 12101-3:2015 certified
NOVENCO CGF smoke fans are tested and certified for operation with variable speed drives for temperatures at up to 300°C during 2 hours according to EN 12101-3 for powered smoke and heat control fans.
Compact low-profile design
With an installation height of just 268 mm, the CGF jet fans are ideal for car parks with limited ceiling space.
Efficient and reliable airflow
The flat Aluzink casing, inlet cone, and internal deflector secure optimal airflow with minimal inlet losses.
Durable and compliant construction
All fans are balanced to VDI 2060 / ISO 1940 Class Q 6.3 and comply with international machinery safety standards.

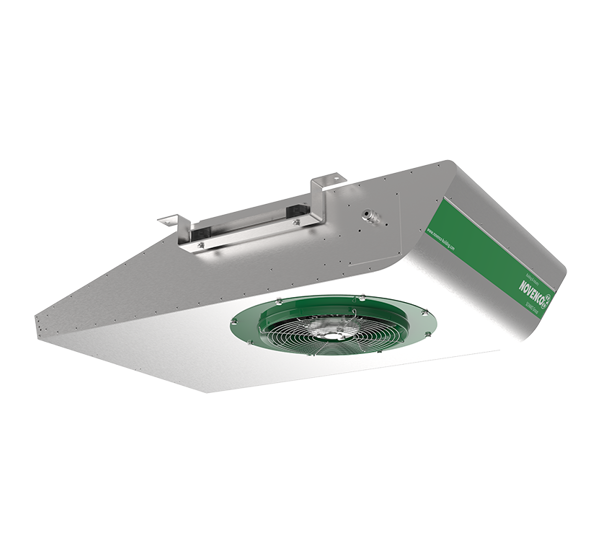

CGF magnelis_1.png

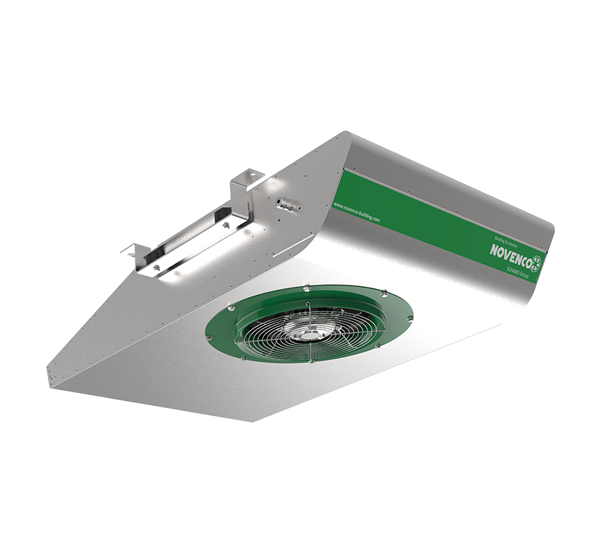

CGF magnelis_2.png

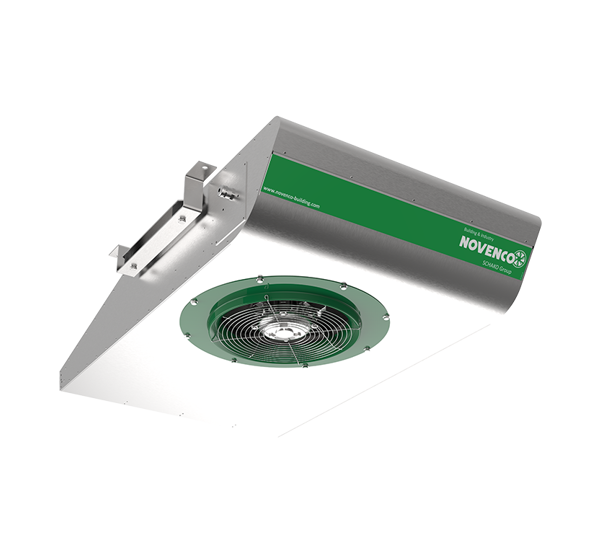

CGF magnelis_3.png

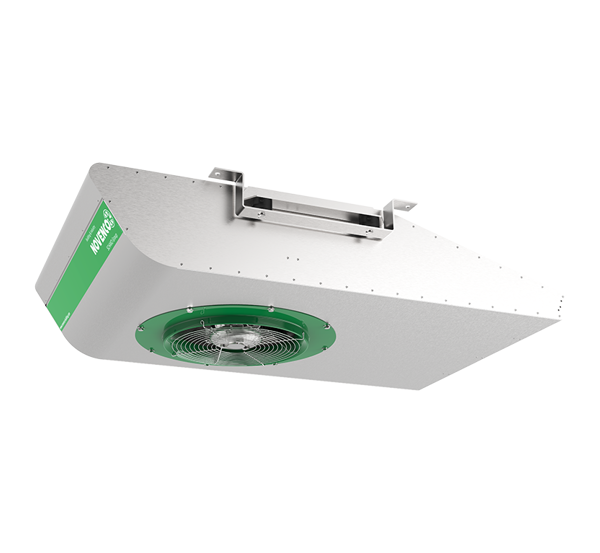

CGF magnelis_4.png

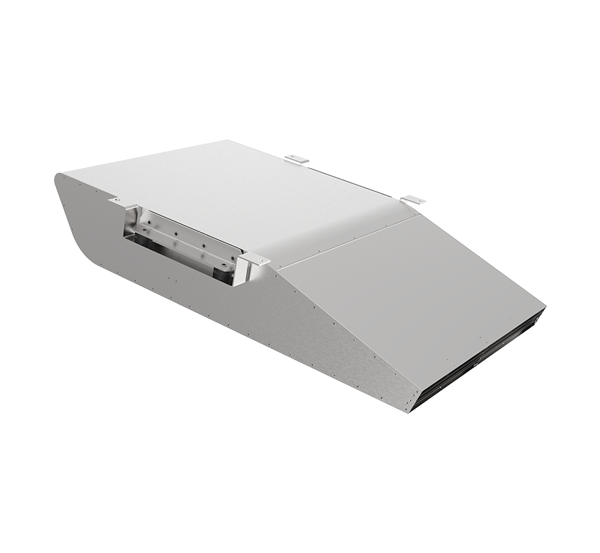

CGF magnelis_5.png

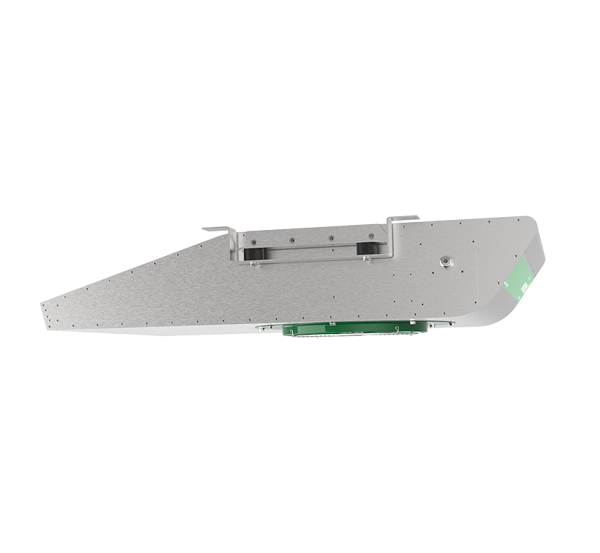

CGF magnelis_6.png
Next image
Previous image
CGF magnelis_1.png
CGF magnelis_2.png
CGF magnelis_3.png
CGF magnelis_4.png
CGF magnelis_5.png
CGF magnelis_6.png
Product highlights
@contentitem.EvtBillede.Name
Above ErP compliance
NOVENCO fans surpass the EU Ecodesign (ErP) requirements and deliver higher efficiency with consistent performance. This results in lower power use, reduced operating costs, and a more sustainable choice for modern ventilation systems.
@contentitem.EvtBillede.Name
EN 12101-3:2015 certified
NOVENCO CGF smoke fans are tested and certified for operation with variable speed drives for temperatures at up to 300°C during 2 hours according to EN 12101-3 for powered smoke and heat control fans.
Compact low-profile design
With an installation height of just 268 mm, the CGF jet fans are ideal for car parks with limited ceiling space.
Efficient and reliable airflow
The flat Aluzink casing, inlet cone, and internal deflector secure optimal airflow with minimal inlet losses.
Durable and compliant construction
All fans are balanced to VDI 2060 / ISO 1940 Class Q 6.3 and comply with international machinery safety standards.
Related products
AZT magnelis_1.png
AZT
AUT-ART
Navigate to
Product information
Product data
Downloads
Fan sizes
Contact form
Related cases
Related industries
Navigate to
Product information
Product data
Downloads
Fan sizes
Contact form
Related cases
Related industries

The CGF jet fan is a flat centrifugal unit designed for efficient, long-term performance in car parks with minimal installation height. It features an inlet cone with a wire guard on the bottom to minimise air losses and an internal outlet deflector to precisely guide the airflow.

The fan is equipped with a two-speed motor for direct start and has the terminal box integrated into the housing. Standard mounting feet and vibration mounts are included for direct ceiling installation. Its robust, corrosion-protected construction is certified for dependable hot smoke extraction, operating at 300°C for two hours during a fire.







Certifications
  • Certified for hot smoke removal according to EN 12101-3 in classes F200 and F300.
  • All F300 units tested at 300 °C for 120 minutes.
Performance

Thrust levels from 12 to 50 N and sound pressures from 61 to 75 dB(A) at 3m/45°.

Sizes

A single jet fan size (500) with two-speed motors as standard.

Fan casing materials & corrosion categories
  • Galvanised steel fan casing and impeller.
  • Corrosion category C3 in accordance with EN/ISO 12944-2.
Accessories & variations
  • Standard mounting feet with anti-vibration mounts for ceiling installation.
  • Terminal box integrated into the fan housing.
Catalogues

Car Park fans EN

Data sheets
Manuals
Certificates

CGF 500 F200

CGF 500 F300

Declaration of performance

CGF 500 EN

CGF 500 DE

AutoCAD drawings

CGF-500-dwg-package.zip

Revit drawings

CGF-500-revit-package.zip

Centrifugal impeller diameter of 500 mm with measured thrust up to 50 Newtons (N).
