160 storey tower ventilation engineering challenge
The world's tallest building presented extraordinary engineering challenges requiring innovative car park ventilation solutions. Engineering consultants confronted unprecedented design complexities in this iconic structure, where traditional ventilation approaches proved completely inadequate for the building's massive scale and stringent safety requirements.

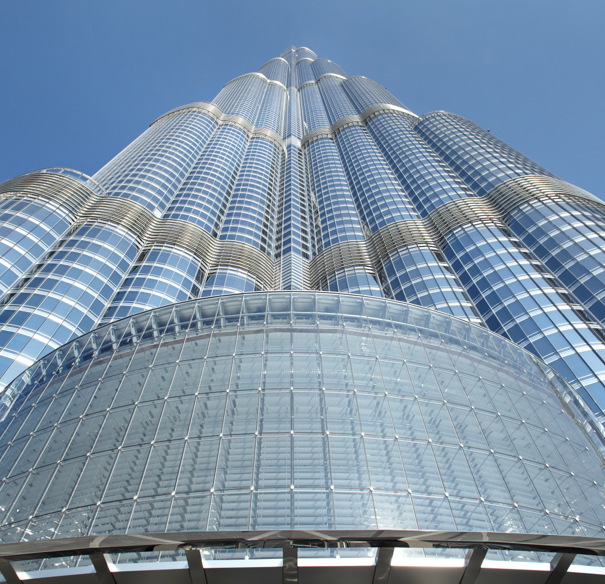

At 830 metres with 160 stories, Burj Khalifa demanded meticulous documentation of precise performance specifications. The project's unprecedented scope created specific technical challenges requiring verified compliance with multiple international standards, comprehensive validation protocols for all equipment, extensive technical verification processes across all systems, and design parameters that exceeded conventional ventilation engineering reference points.
These requirements drove the selection process towards solutions offering complete technical transparency and robust documentation capabilities.
3,000 spaces
Car park capacity89,000 m²
Total car park area246 fans
Total fan installationAshrae and AMCA standards compliance achieved
The car park facility spans four levels accommodating 3,000 parking spaces across 89,000 m² total area. Meeting the stringent requirements of this scale demanded rigorous certification processes with full compliance with US standards through comprehensive testing protocols.
The ventilation system specifications deliver complete documentation packages including detailed technical drawings with exact dimensional requirements and comprehensive installation guidelines. Performance curves meticulously document airflow characteristics across complete operating ranges, providing engineers with measured data points for system verification.
Ashrae and AMCA standards compliance achieved
The car park facility spans four levels accommodating 3,000 parking spaces across 89,000 m² total area. Meeting the stringent requirements of this scale demanded rigorous certification processes with full compliance with US standards through comprehensive testing protocols.
The ventilation system specifications deliver complete documentation packages including detailed technical drawings with exact dimensional requirements and comprehensive installation guidelines. Performance curves meticulously document airflow characteristics across complete operating ranges, providing engineers with measured data points for system verification.
Comprehensive fire safety validation
Critical to consultant specifications, detailed CFD simulation analysis comprehensively validated the system design performance. Simulation results demonstrated carbon monoxide concentration control maintained below 35 parts per million under all operating conditions, whilst air velocity mapping confirmed optimal circulation patterns throughout the entire facility area.
Fire safety specifications require continuous operation at 300°C for minimum 60 minutes under emergency conditions. The system underwent extensive validation because life safety depended on verified performance during critical scenarios.
Complete design validation and commissioning support
The complete installation comprises 50 Novax™ axial flow fans and 196 jet fans strategically positioned throughout the facility. This combination delivers efficient air circulation during normal operations whilst maintaining emergency smoke control capabilities. Each component includes comprehensive specification sheets with detailed performance data verified through independent testing.
Technical teams deliver comprehensive consultant support throughout complete project development phases. This support begins during initial specification development and continues through to commissioning, as complex high-rise applications demand ongoing engineering collaboration. Specification assistance ensures optimal system design tailored to unique project requirements.
Complete project documentation includes installation drawings, comprehensive performance data, and compliance certificates. Technical support continues through commissioning phases and to operational implementation, providing engineers with direct access to application specialists throughout the project lifecycle.
