 AUT-ART

The NOVENCO AUT/ART jet fans are compact, robust, and specifically designed for car park ventilation systems, offering dependable, efficient performance and a long service life.
These units feature a super compact design and a low installation height, making them ideal for low-ceiling environments.
They achieve low sound levels through a patented sound silencing technique despite not having traditional silencers.
Both the fully reversible ART and the efficient unidirectional AUT models are built on the robust NovAx platform.
They are certified as dual operation fans, providing efficient daily ventilation while also ensuring certified, high-temperature smoke control during a fire.

Product highlights
@contentitem.EvtBillede.Name
Above ErP compliance
NOVENCO fans surpass the EU Ecodesign (ErP) requirements and deliver higher efficiency with consistent performance. This results in lower power use, reduced operating costs, and a more sustainable choice for modern ventilation systems.
@contentitem.EvtBillede.Name
EN 12101-3:2015 certified
NOVENCO smoke fans are tested and certified for operation with variable speed drives for temperatures at up to 400°C during 2 hours according to EN 12101-3 for powered smoke and heat control fans.
Optimised airflow performance
Aerodynamic guide vanes, inlet cones, and internal deflectors ensure efficient thrust and minimal pressure loss. The reversible ART version includes dual deflectors for full bidirectional operation.
Durable NovAx impeller design
The impeller features a NovAx hub with cast aluminium blades set at a fixed pitch angle. Direct motor coupling ensures precise and stable operation. All NovAx fans are balanced to VDI 2060 and ISO 1940 Class Q 6.3.
Robust construction for demanding environments
Standard execution is fully galvanised and suitable for unheated, low-corrosive areas (DS/EN ISO 12944-2, C3). Optional powder coating is available in any colour.
WEB 1920px Q70 AUT magnelis_1.jpg
WEB 1920px Q70 AUT magnelis_2.jpg
WEB 1920px Q70 AUT magnelis_3.jpg
WEB 1920px Q70 AUT magnelis_5.jpg
WEB 1920px Q70 AUT magnelis_6.jpg
WEB 1920px Q70 AUT magnelis_7.jpg
WEB 1920px Q70 AUT magnelis_9.jpg
Next image
Previous image
WEB 1920px Q70 AUT magnelis_1.jpg
WEB 1920px Q70 AUT magnelis_2.jpg
WEB 1920px Q70 AUT magnelis_3.jpg
WEB 1920px Q70 AUT magnelis_5.jpg
WEB 1920px Q70 AUT magnelis_6.jpg
WEB 1920px Q70 AUT magnelis_7.jpg
WEB 1920px Q70 AUT magnelis_9.jpg
Product highlights
@contentitem.EvtBillede.Name
Above ErP compliance
NOVENCO fans surpass the EU Ecodesign (ErP) requirements and deliver higher efficiency with consistent performance. This results in lower power use, reduced operating costs, and a more sustainable choice for modern ventilation systems.
@contentitem.EvtBillede.Name
EN 12101-3:2015 certified
NOVENCO smoke fans are tested and certified for operation with variable speed drives for temperatures at up to 400°C during 2 hours according to EN 12101-3 for powered smoke and heat control fans.
Optimised airflow performance
Aerodynamic guide vanes, inlet cones, and internal deflectors ensure efficient thrust and minimal pressure loss. The reversible ART version includes dual deflectors for full bidirectional operation.
Durable NovAx impeller design
The impeller features a NovAx hub with cast aluminium blades set at a fixed pitch angle. Direct motor coupling ensures precise and stable operation. All NovAx fans are balanced to VDI 2060 and ISO 1940 Class Q 6.3.
Robust construction for demanding environments
Standard execution is fully galvanised and suitable for unheated, low-corrosive areas (DS/EN ISO 12944-2, C3). Optional powder coating is available in any colour.
Navigate to
Product information
Product data
Fan sizes
Contact form
Related cases
Navigate to
Product information
Product data
Fan sizes
Contact form
Related cases

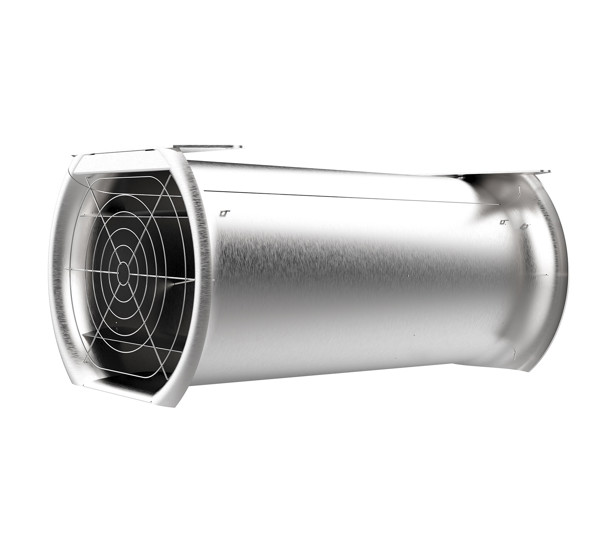

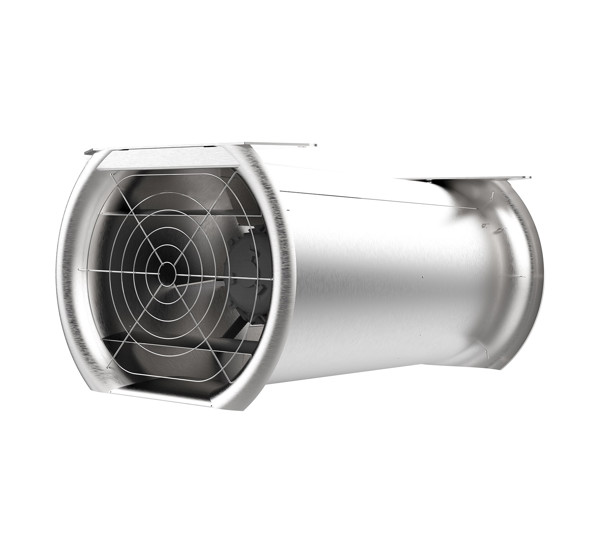

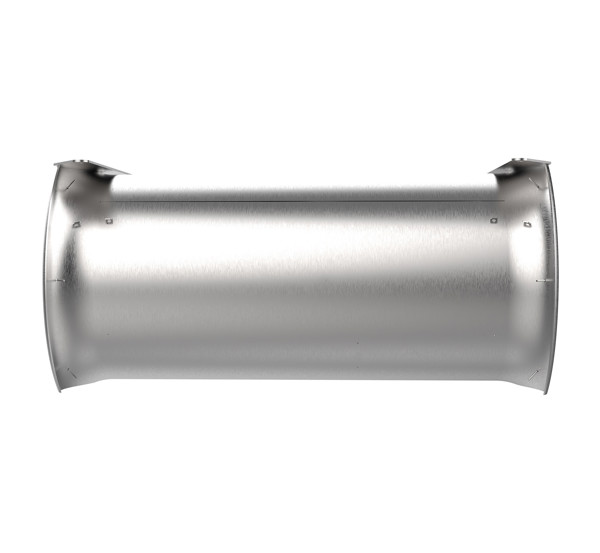

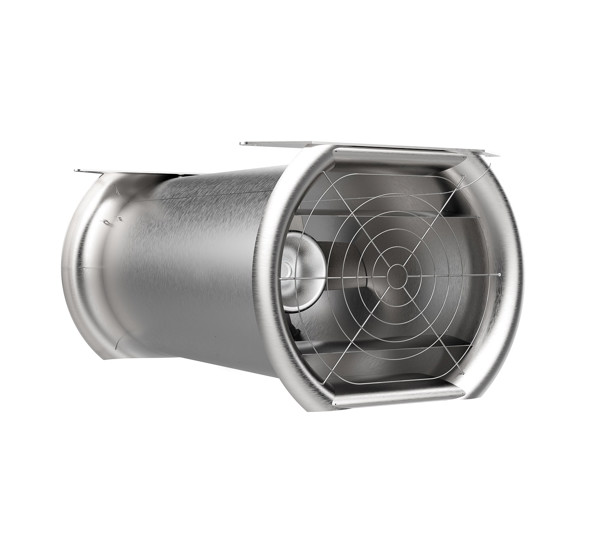

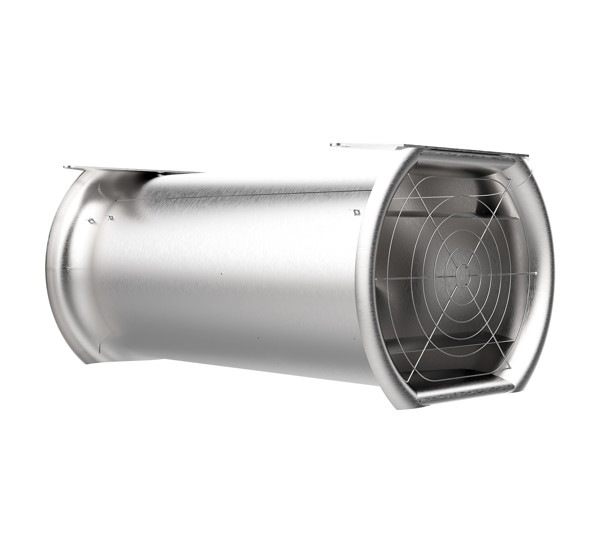

The sturdy fan casing is round and fitted with integrated inlet cones on both sides to reduce inlet losses. Internal wire guards are mounted on both ends.
AUT jet fans use a single deflector to guide airflow in one direction, while ART jet fans include deflectors on both ends for reversible flow.
A patented sound attenuation technique is used to minimize sound levels without using silencers.
Rigorously tested and certified for hot smoke extraction up to 400°C for two hours for dependable smoke control during a fire.
Their robust construction uses high-quality materials for reliable corrosion protection, guaranteeing long-term durability and performance.

Certifications
  • Certified for hot smoke removal according to EN 12101-3 in classes F200, F300, and F400.
  • All F300 units tested at 300 °C for 120 minutes.
Performance

Thrust levels from 14 to 53 N and sound pressures from 54 to 75 dB(A) at 3m/45°.

Fan sizes

A single jet fan size (400) with two-speed motors as standard.

Fan casing materials & corrosion categories

Galvanized steel casings, silencers and hub with aluminium impeller blades.

Accessories & variations
  • Reversible (ART) and unidirectional (AUT) versions.
  • Deflectors and wire guards integrated in the fan casing.

Impeller diameter of 400 mm with measured thrust up to 50 Newtons (N).
