CGF

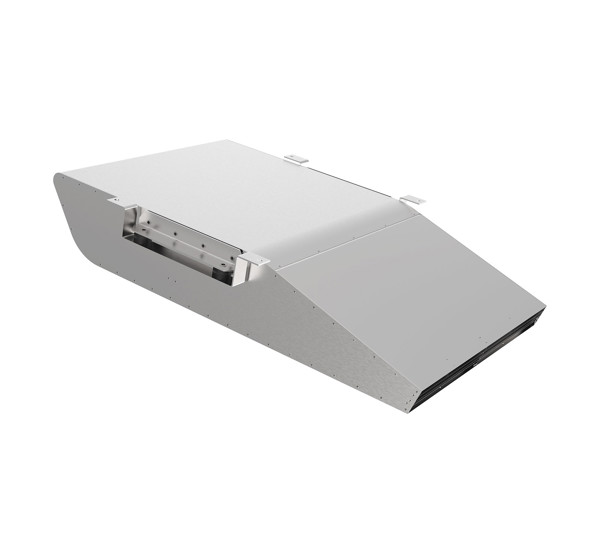

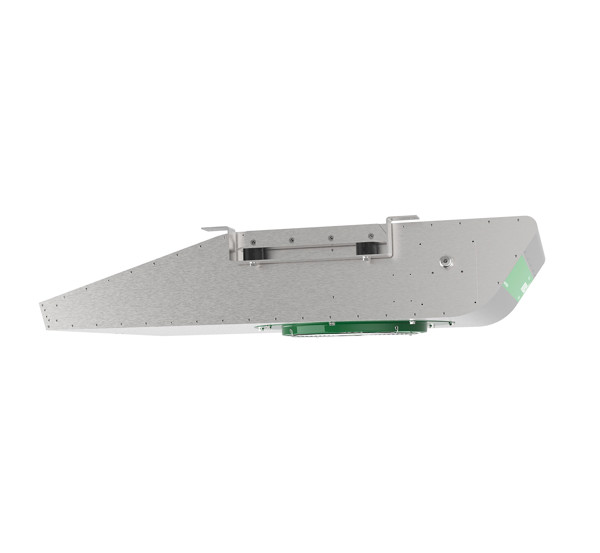

The NOVENCO CGF unidirectional centrifugal jet fan is a compact, robust, and reliable solution perfectly suited for car parks, featuring an ultra-low installation height for use in spaces with low ceilings.
Its super low-profile design and special outlet guarantee efficient airflow control and high thrust transfer.
Constructed from corrosion-protected galvanised steel, the CGF is certified for dual operation, providing highly efficient, low-noise daily ventilation and dependable smoke control, maintaining performance at 300°C for two hours during a fire.

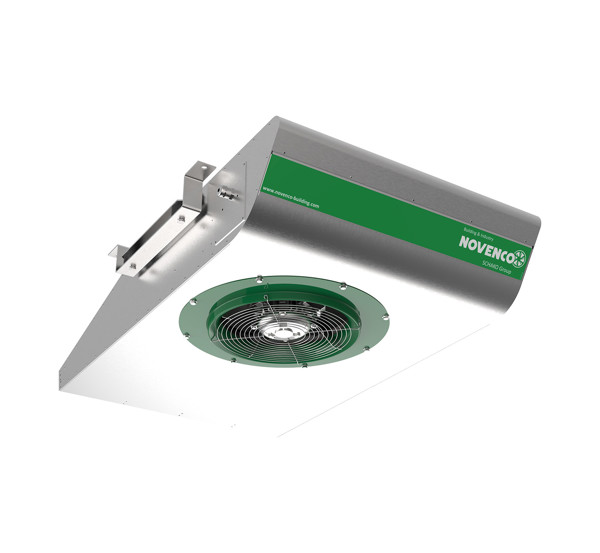

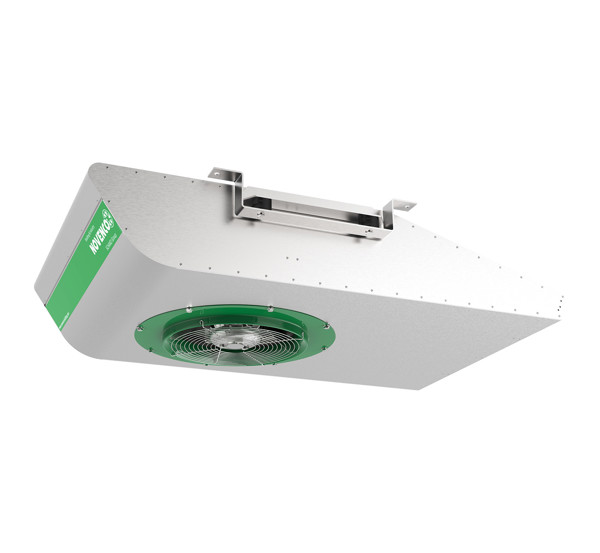

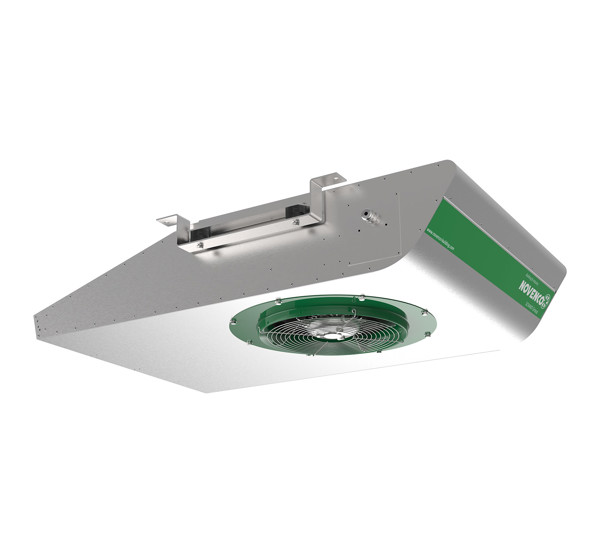

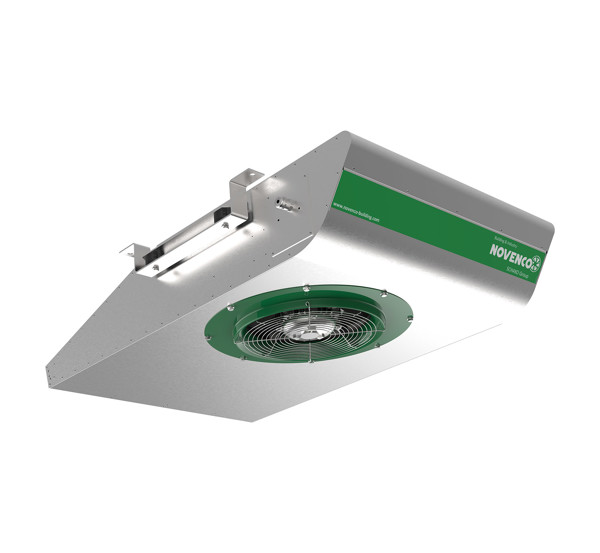

The CGF jet fan is a flat centrifugal unit designed for efficient, long-term performance in car parks with minimal installation height. It features an inlet cone with a wire guard on the bottom to minimise air losses and an internal outlet deflector to precisely guide the airflow.
The fan is equipped with a two-speed motor for direct start and has the terminal box integrated into the housing. Standard mounting feet and vibration mounts are included for direct ceiling installation. Its robust, corrosion-protected construction is certified for dependable hot smoke extraction, operating at 300°C for two hours during a fire.
- Certified for hot smoke removal according to EN 12101-3 in classes F200 and F300.
- All F300 units tested at 300 °C for 120 minutes.
Thrust levels from 12 to 50 N and sound pressures from 61 to 75 dB(A) at 3m/45°.
A single jet fan size (500) with two-speed motors as standard.
- Galvanised steel fan casing and impeller.
- Corrosion category C3 in accordance with EN/ISO 12944-2.
- Standard mounting feet with anti-vibration mounts for ceiling installation.
- Terminal box integrated into the fan housing.
Centrifugal impeller diameter of 500 mm with measured thrust up to 50 Newtons (N).
